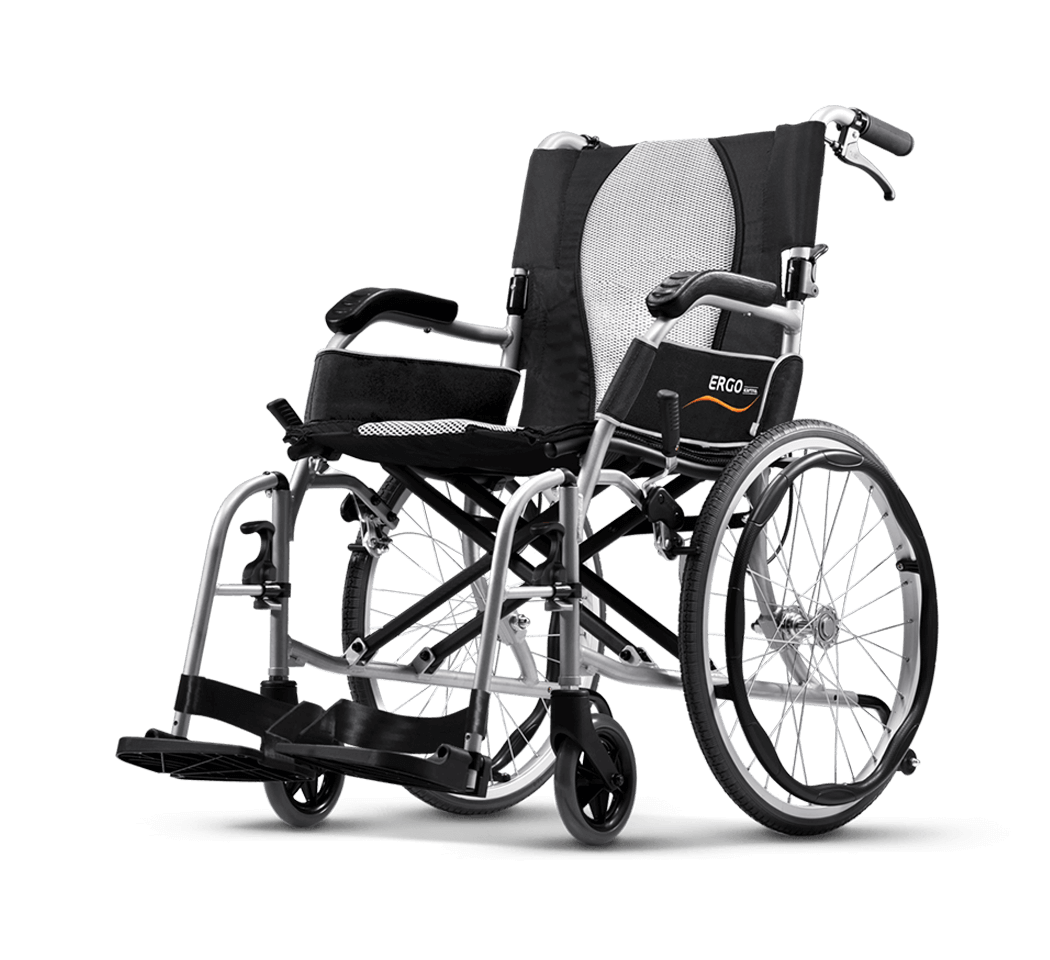

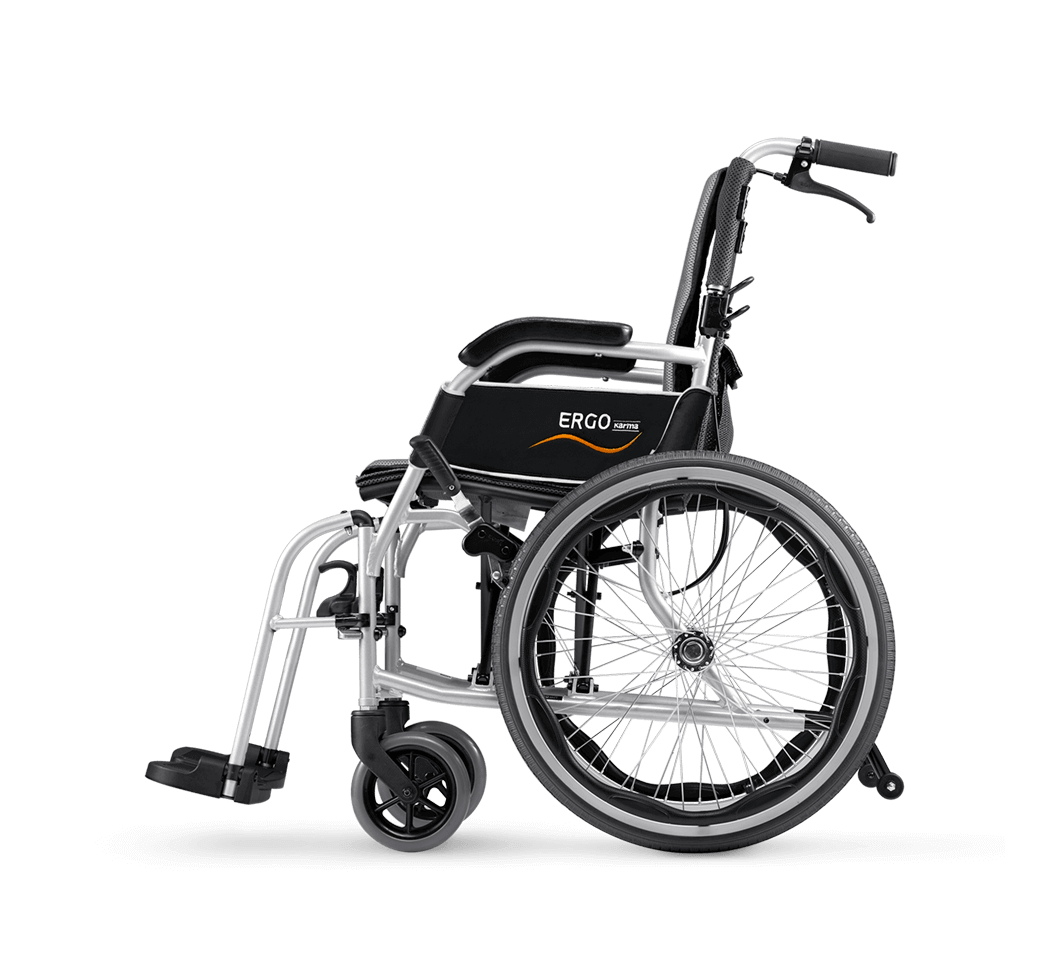

Ergo Lite 2 suitable for users of GMFCS level 4
Capable of walking with a walking frame but mostly relies on wheeled mobility at home and when out.
|Product Model||Ergo Lite 2 (KM-2512)|
|Nominal seat width (mm/in)*||400 / 16||450 / 18|
|Nominal seat depth (mm/in)**||420 / 16||420 / 16|
|Front caster / Rear wheel size (in)||6 / 20||6 / 20|
|Backrest height (mm)||420||420|
|Headrest height above seat (mm)||N/A||N/A|
|Armrest to seat distance (mm)||215||215|
|Front location of armrest structure (mm)||310||310|
|Seat surface height at front edge (mm)||480||480|

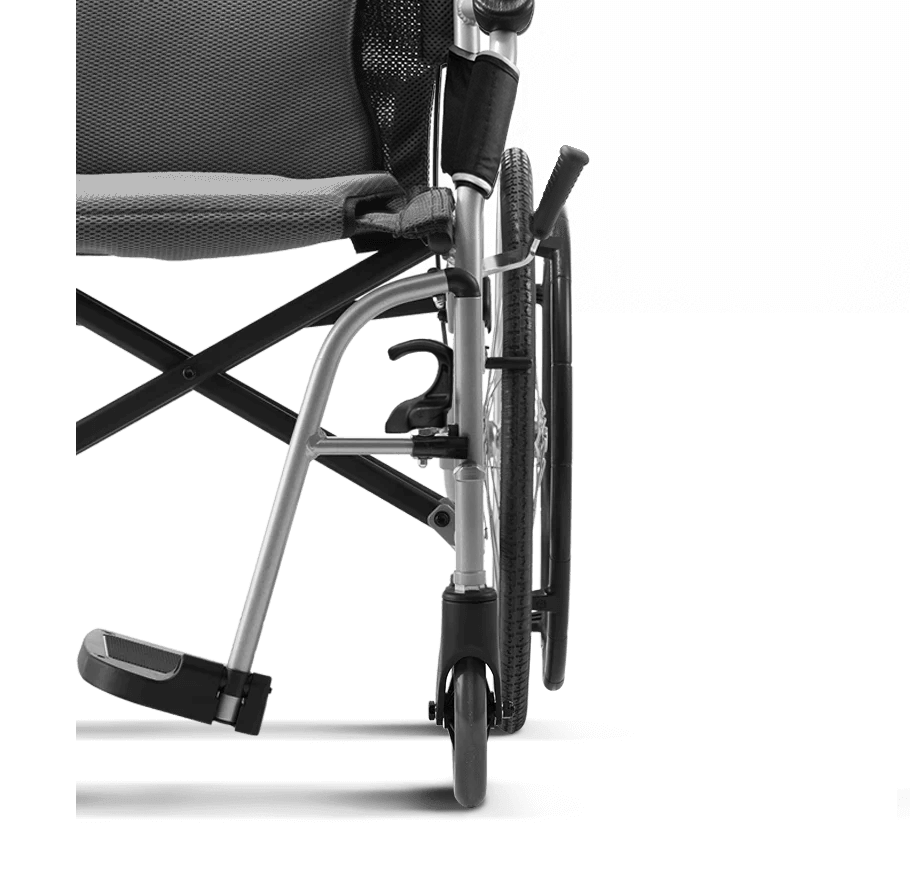

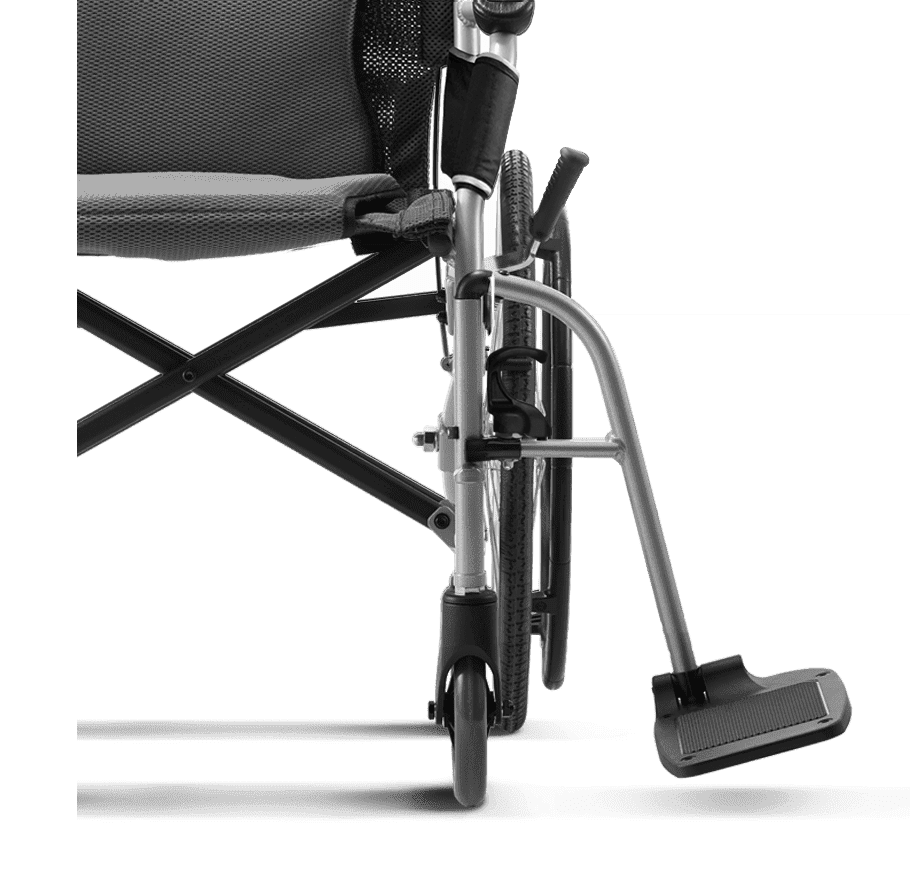

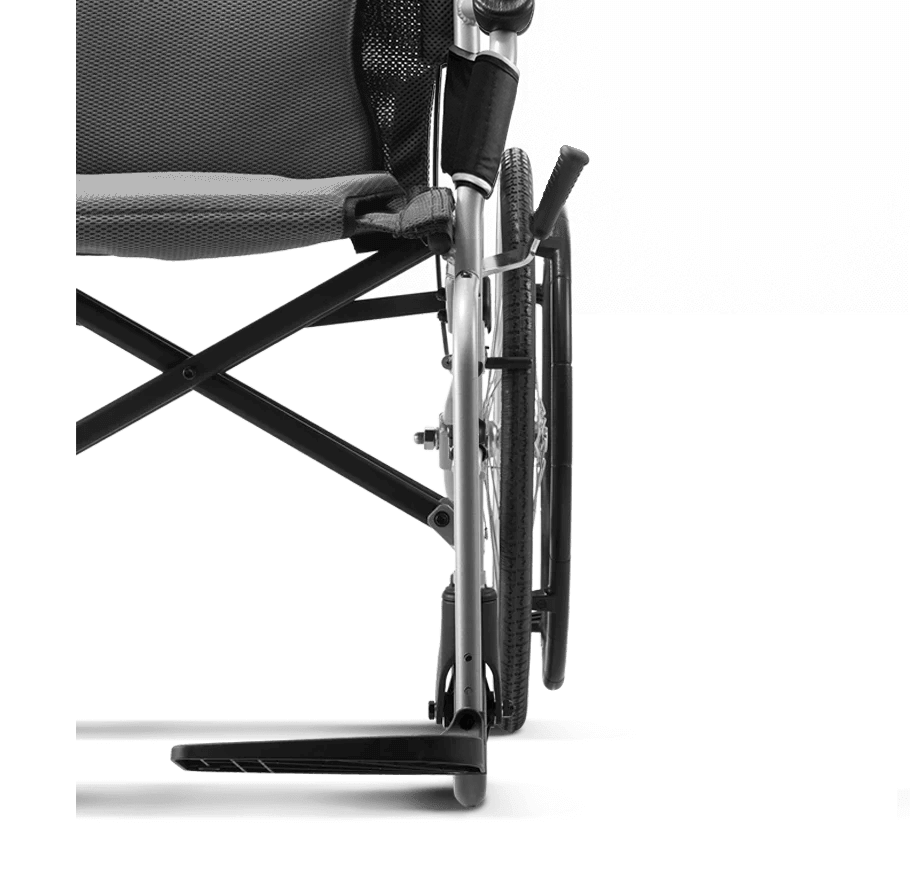

|Footrest to seat distance (mm)||360 ~ 410||360 ~ 410|
|Effective seat width (mm)||400||450|
|Effective seat depth (mm)||430||430|
|Seat plane angle (X°)||5||5|
|Backrest angle (X°)||11||11|
|Seat to backrest angle (X°)||96||96|
|Leg to seat angle (X°)||102||102|
|Overall length with legrest (mm)||930||930|
|Overall width (mm)||595||645|
|Overall height (mm)||900||900|
|Folded length (mm)||695||695|
|Folded width (mm)||280||295|
|Folded height (mm)||700||710|
|Total mass (kg)||10.7||10.9|
|Mass of the heaviest part (kg)||6.7 (20Q)|
|Maximum user weight (kg)||100||100|
|Minimum turning radius (mm)||820||840|
|Minimum turning radius without user (mm)||735||760|
|Pivot width (mm)||1150||1180|
|Static stability downhill (X°)||17.9||17.9|
|Static stability uphill (X°)||10.1||10.1|
|Static stability sideways (X°)||11.4||11.4|
|Handrim diameter (mm)||430||430|
|Horizontal location of axle (mm)||5||5|
* Nominal seat width is measured the width of seat cushion at 120mm in front of the backrest. This value is mainly used in the product ordering process.
** Nominal seat depth is measured from the front end of the seat cushion to the back cushion. This value is mainly used in the product ordering process.
– The actual product specifications differ from the data in the table by ±1 cm ±0.5 kg.
– The actual product specifications may vary according to different configurations.
– Karma reserves the right to modify information herein without further notice.
