Casing Colors

Specification

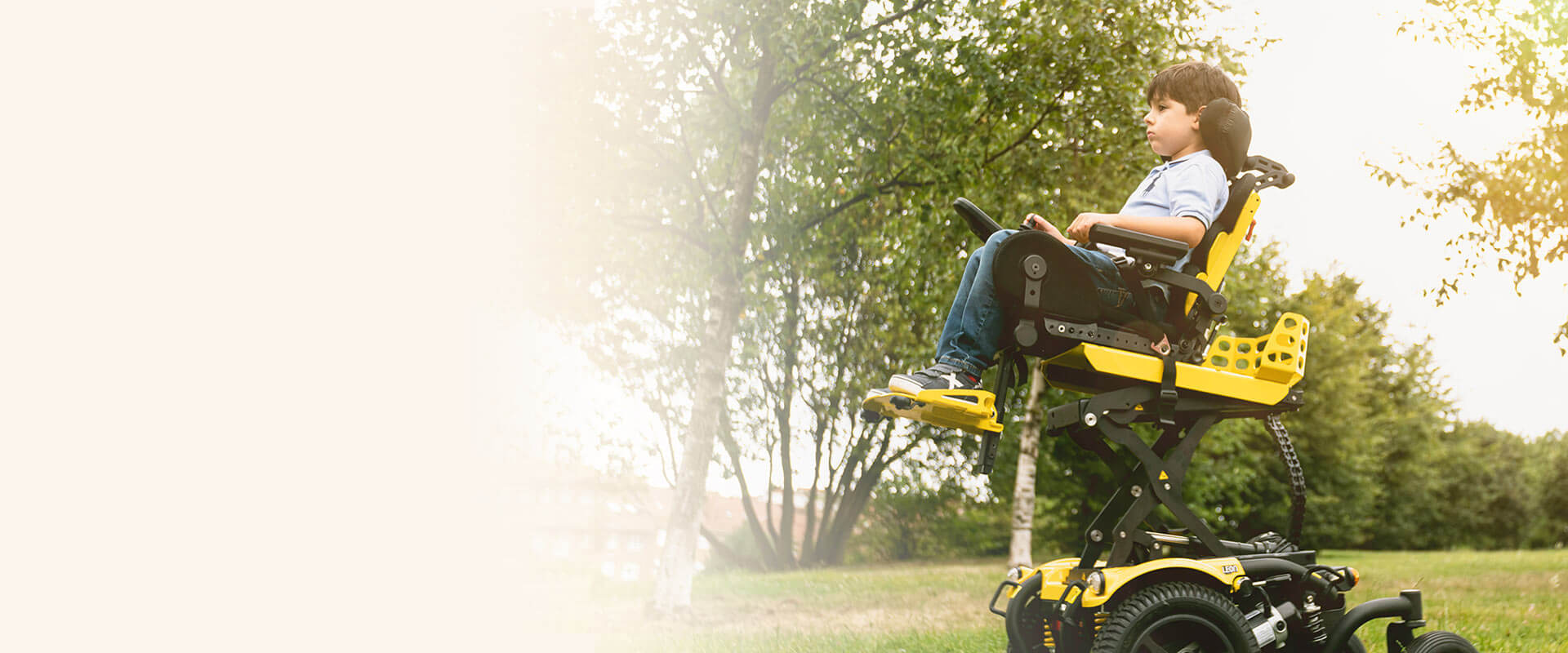

Product ModelLeon F Kameleon
Seating SystemSIZE 1SIZE 2
MinimumMaximumMinimumMaximum
Nominal seat width (mm)*250~300,
25mm increment
350~400,
25mm increment
Nominal seat depth (mm)*255~395,
20mm increment
310~450,
20mm increment
Backrest height without cushion (mm) 405485485585
Backrest height with cushion (mm) 370450 450 550
Headrest height above seat (mm)N/AN/AN/AN/A
Armrest to seat distance without
cushion (mm)
150 255260 365
Armrest to seat distance with cushion (mm)120215 230 325
Front location of armrest structure
(mm)
0 500 0 460
Seat surface height at front edge
without cushion (mm)
460760460760
Seat surface height at front edge with
cushion (mm)
500800500800
Footrest to seat distance without
cushion (mm)
160 330160 330
Footrest to seat distance with cushion (mm)200 370200 370
Effective seat width (mm) 250 300 350 400
Effective seat depth (mm) 275410 330 470
Seat plane angle (X°) -342-342
Backrest angle (X°) -348-348
Seat to backrest angle (X°)9114291142
Leg to seat angle (X°)7916579165
Driving Characteristics SIZE 1SIZE 2
MinimumMaximum
Drive wheel size 3.00 - 8 (14")
Rear caster size 2.80/2.50 - 4 (9")
Overall length with legrest (mm) 1090125011001260
Overall width (mm) 620 -620 -
Overall height (mm) 760 11408201220
Folded length (mm) 1010 -1010 -
Folded width (mm)620-620-
Folded height (mm) 760-820-
Total mass (kg) 167 (50Ah) 196 (80Ah)
Total mass without batteries (kg) 136 142
Mass of the heaviest part (kg) 116116
Maximum user weight (kg) 5757
Drive range (km)*** 25.6 (50Ah) 46.2 (80Ah)
Maximum speed forward (km) 1212
Minimum braking distance from max
speed (mm)
26172617
Obstacle climbing (mm) 5050
Ground clearance (mm) 60 60
Minimum turning radius (mm) 660660
Minimum turning radius without user
(mm)
660660
Reversing width (mm) 845845
Static stability downhill (X°) 11
Static stability uphill (X°)10
Static stability sideways (X°)16
Dynamic stability uphill (X°) 6
Ability to climb rated slope (X°)*** 12
Electrical System
Motor power (W)
450
Battery capacity (Ah) 50*2 / 80*2
Charger output current (A) 5 /6/ 8
Battery Compartment (L x W x H) (mm) 345 x 260 x 220

Electric ver.04


Remark :
* Nominal seat width is measured the width of seat cushion at 120mm in front of the backrest. This value is mainly used in the product ordering process.
** Nominal seat depth is measured from the front end of the seat cushion to the back cushion. This value is mainly used in the product ordering process.
*** Drive range/ Ability to climb rated slope are estimated based on the following conditions: 20℃~35℃, 57 kg occupant, brand new fully charged batteries and driving on the flat road.
– The actual product specifications differ from the data in the table by ±1 cm ±0.5 kg.
– The actual product specifications may vary according to different configurations.
– KARMA reserves the right to modify information herein without further notice.
